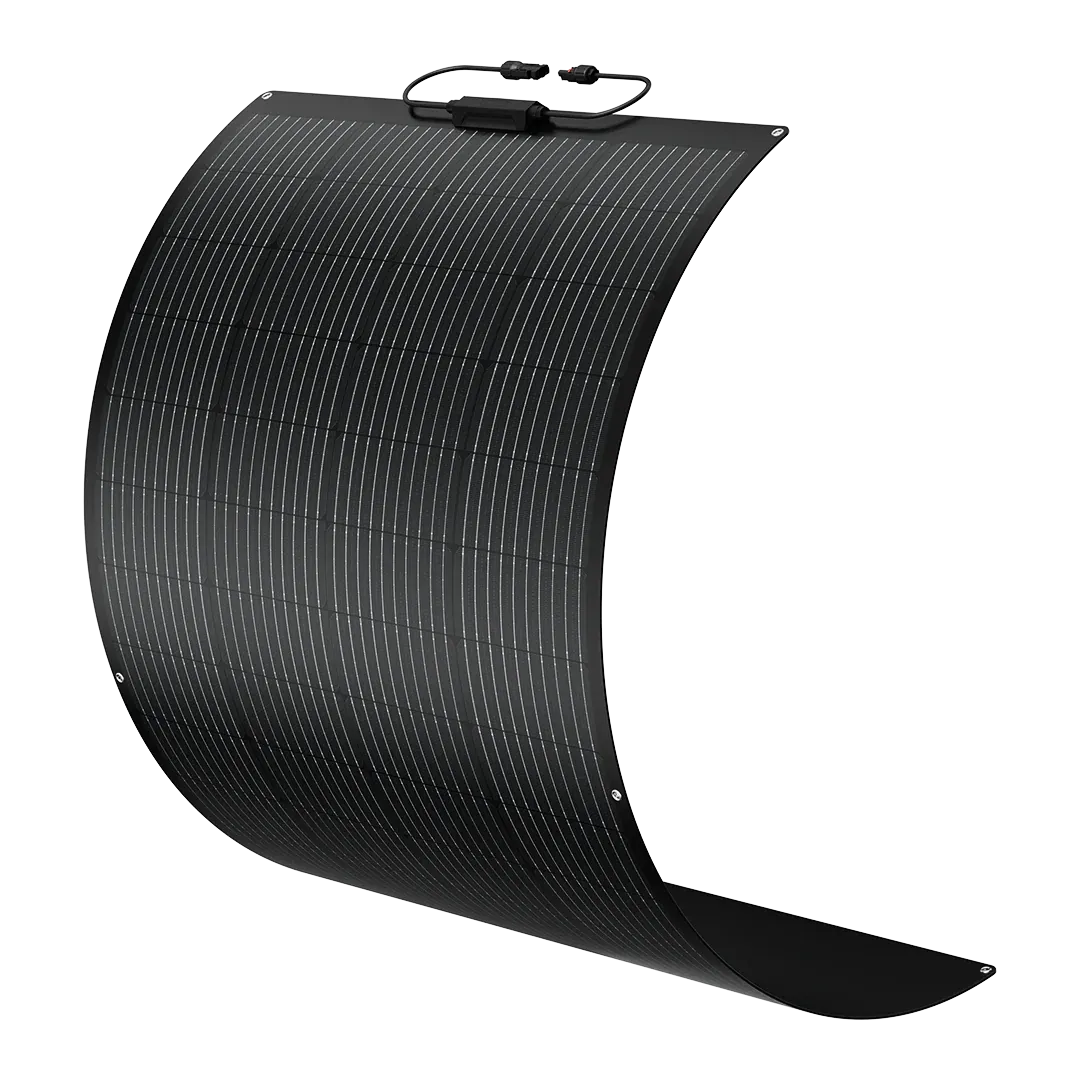

BougeRV Arch 200 Watt Fiberglass Curved Solar Panel

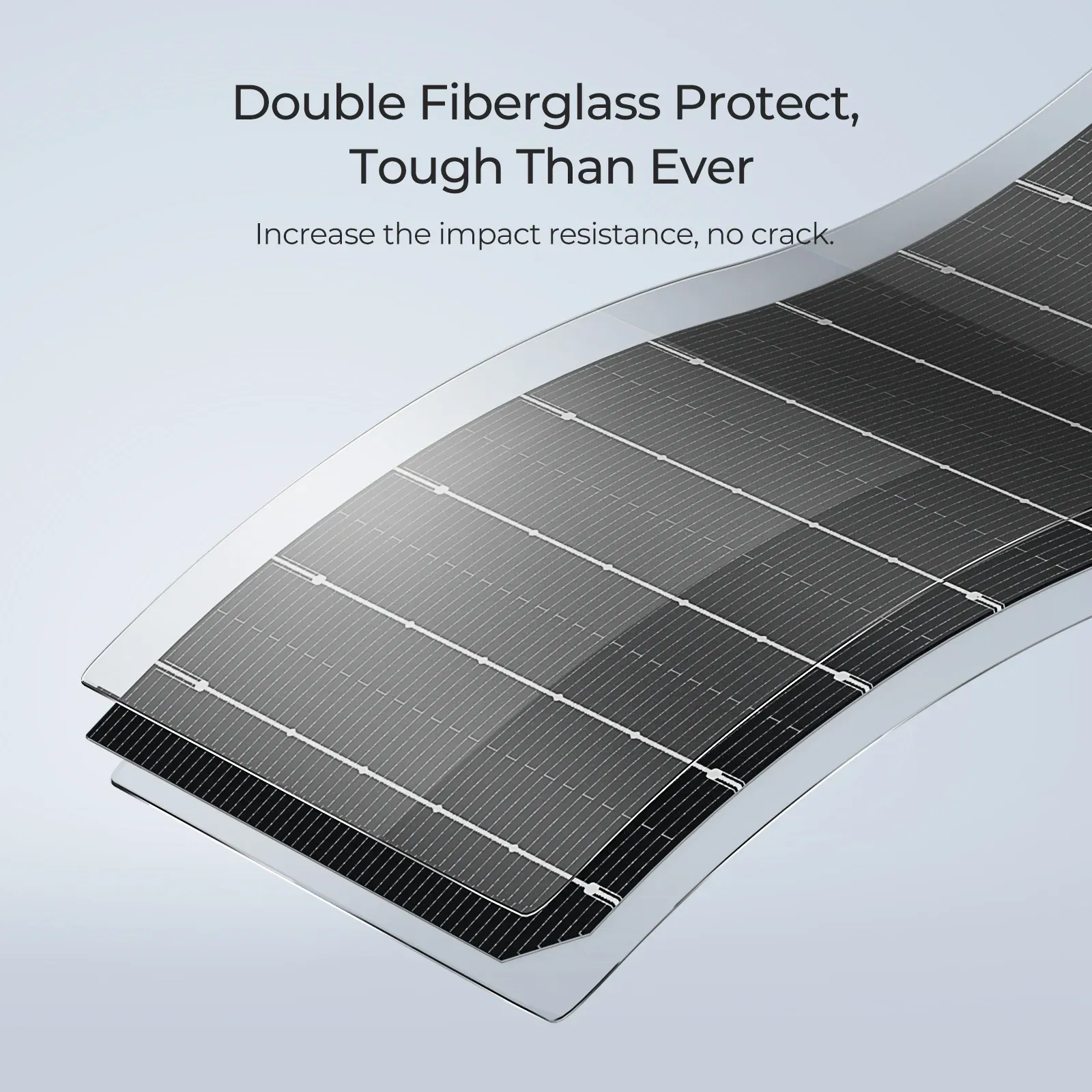

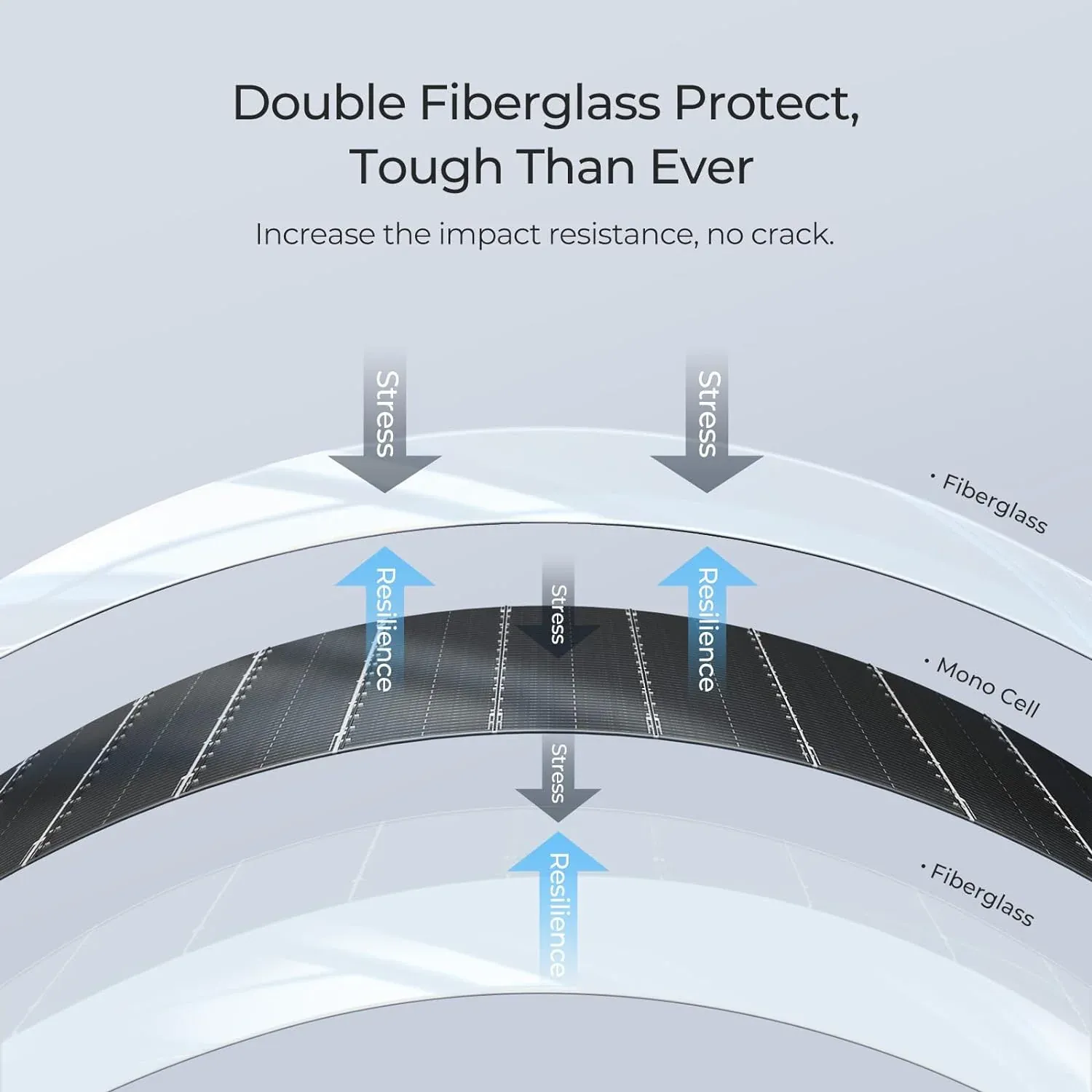

BougeRV launches the Arch, a 200W fiberglass curved solar panel that inches you closer to the green goals. The 10BB mono solar cell nestles snugly between double glass fiber layers on either surface, well protected from impact damages.
SUPERIOR CURVED DESIGN

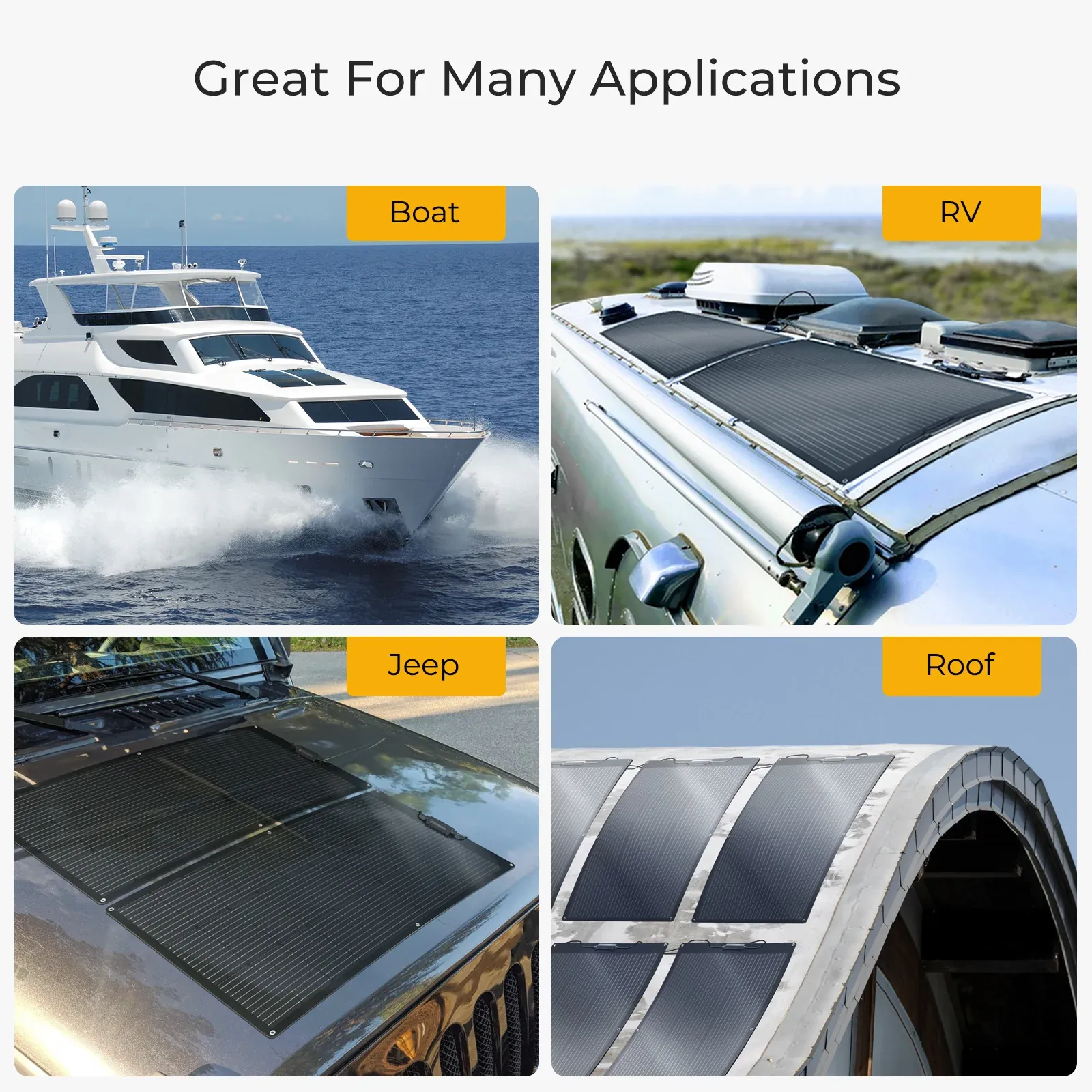

Crafted for flexible fiberglass material, Arch bends up to 270-degrees to conveniently conform to the surface of boats, RVs, jeeps and roofs minimizing usage space. Its diverse mounting options allow enhanced adaptability. Tapping into the unexplored potential of solar energy application, Arch outshines any regular monocrystalline silicon panel by a wide margin.
10BB CELL DESIGN
Experience 23% higher efficiency with minimized cell shading and enhanced light absorption that typically promote panels' overall longevity.
ULTRA LIGHTWEIGHT & SLIM
Ideal for tighter spaces, Arch is an ultra-slim 2.1mm fiberglass curved solar panel at just 7 pounds. An efficient alternative to traditional panels, Arch is perfect for compact living spaces. Enjoy the greenest energy source without compromising your space.
IP68 WATERPROOF
Hailed as a failproof power source, Arch 200W panels are IP68 certified that can withstand extreme weather conditions.
DURABLE & LONG LASTING
Arch is a sturdy design built to resist 2400Pa high wind and 5400Pa heavy snow. The corrosion-resistant aluminum fabrication support this power panel with extended lifespan.
Specifications:
Max Power (Pmax): 200±5%W
Operating Temperature Limits: -40℉ ~ 185℉
Solar Cells Efficiency: 23%
Series Fuse Rating: 10A
Max. Power Voltage Vmp (V): 17.1±5%V
Temperature Coefficient Pmax: -0.39%/℃
Max. Power Current Imp (A): 11.7±5%A
Temperature Coefficient Voc: -0.33%/℃
Open Circuit Voltage Voc (V): 20.1±5%V
Temperature Coefficient Isc: 0.06%/℃
Short Circuit Current (Isc): 12.28±5%A
Dimensions: 58.1 x 31 x 0.08 inches
Warranty: 25 years
Weight: 7.05 lbs
Warranty Description: 10 Years
What's in the Box:
1 x Arch 200W Fiberglass Curved Solar Panel
1 x User Manual
