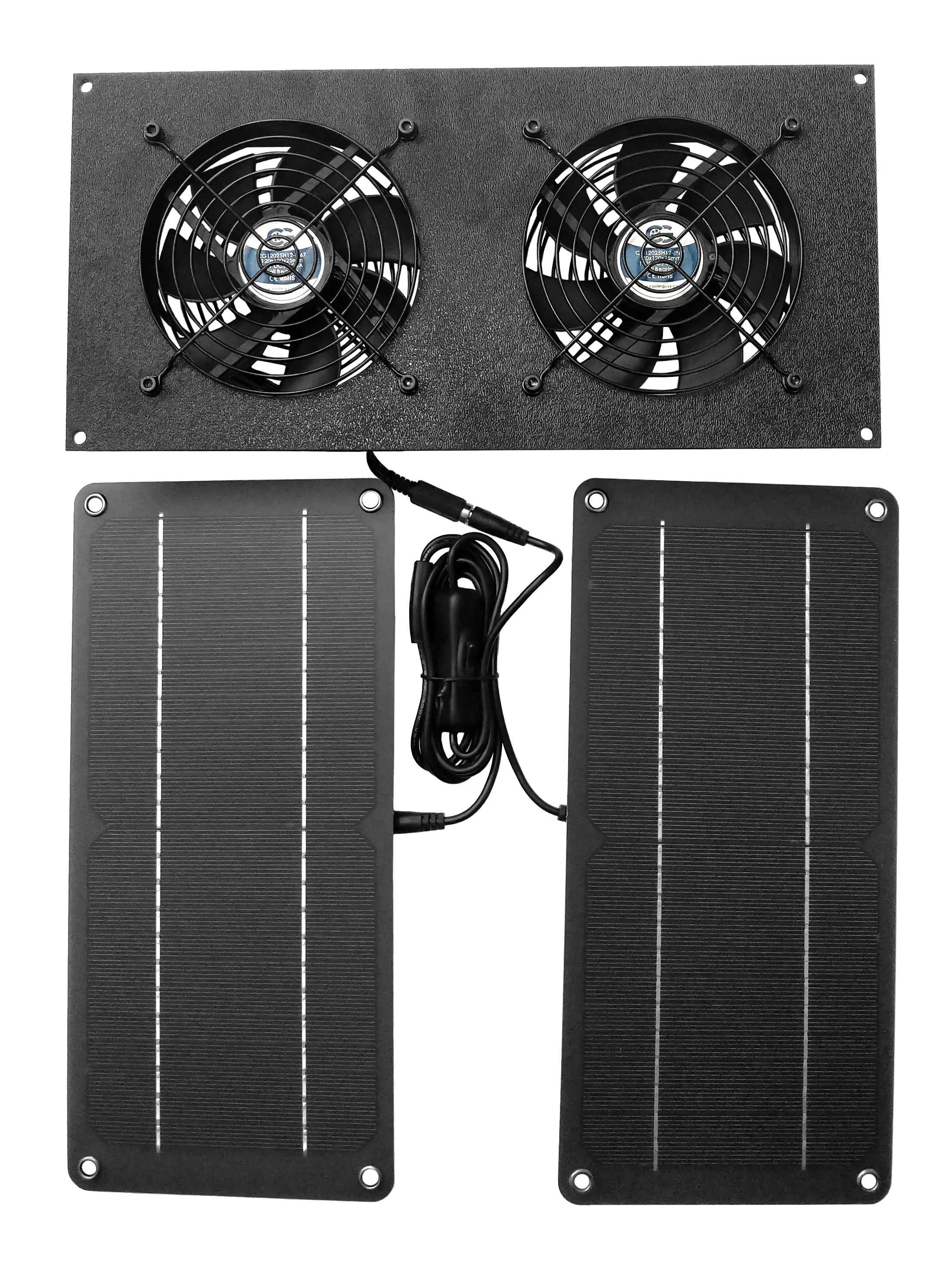

Coolerguys Solar Powered Dual Fan Cooling Kit for Chicken Coops, Greenhouses, Doghouses, Sheds, and Other Enclosures
840556072232
This will work as a great option for a solar powered fan for a greenhouse, shed, doghouse, or chicken coop.
The panels are IP55 (outdoor environment) rated and the fan is IP67 (submersible in water), but the connectors are not. Please protect connectors with tape or other sealant if exposed frequently to elements. This solar configuration can reach 13 watts in direct sunlight (1.083A). Fans will slow over time as sun moves and is not direct. We recommend that panels are mounted in different orientations (distance and/or angle) to maximize sun exposure throughout the day. Must have sunlight for power as there is no battery for energy storage while panel is shaded.
Includes:
- Solar Panel Connector Cable with Inline Manual On/Off Switch
- (2)
- Thermal Acrylic Mounting Bracket
- (4)
- (4) Small Black Wood Screws M3.5 *12mm
- (8) M4 40MM Pan Head Bolt - Stainless Steel & Black
- (8) M4 Nut - Stainless Steel & Black
Assembled Specifications: (measured in direct sunlight)
- Airflow: 203 CFM
- Noise: 45 DBA
- Max Energy Draw: 12v / 0.72A
- MTBF: 67,000 hrs
- Temp Range: -40 C (-40 F) to 70 C ( 158 F)
- Exterior Mounting Bracket Dimensions: 13" x 6.25"
- Recommended Cutout Dimensions: 11" x 5"
- Cord Length: 90" from panel to fans and 18" between panels maximum
Solar Panel Specifications:
- Size: 11.75" x 5.5" Each
- Output: 13W Combined Maximum (full sun)
Optional Accessories:
- Additional with for greater wattage output or greater sun coverage
- 72"
- for Panel Mounting
- NEW: hook this kit up in line with a battery (not included) using our and .
- (5.5x2.1mm) to 3 pin Fan (male housing female pin) Cable Adapter
