High-quality Sausage Hanging Machine High Quality
1.Product introduction of Sausage Hanging Machine:
1. Main function: It is suitable for filling small-diameter kink products such as protein casings (kissing sausage, table roast) nylon casings.
2. Main features
1) The machine is made of high-quality stainless steel, easy to clean, and in line with national hygiene standards.
2) The main pneumatic control units are all imported components, which improves the operation accuracy and service life of the equipment, and is safe and reliable.
3) The various actions and parameters of the machine are all modified on the control box in front of the machine, which is simple and clear, and the operation is very convenient.
4) The running speed can be adjusted steplessly according to the needs of users.
5) The quantitative size of the length is set by the user changing the timing belt.
6) Casing automatic detection system (automatic stop without casing).
7) Kinker automatic flip system.

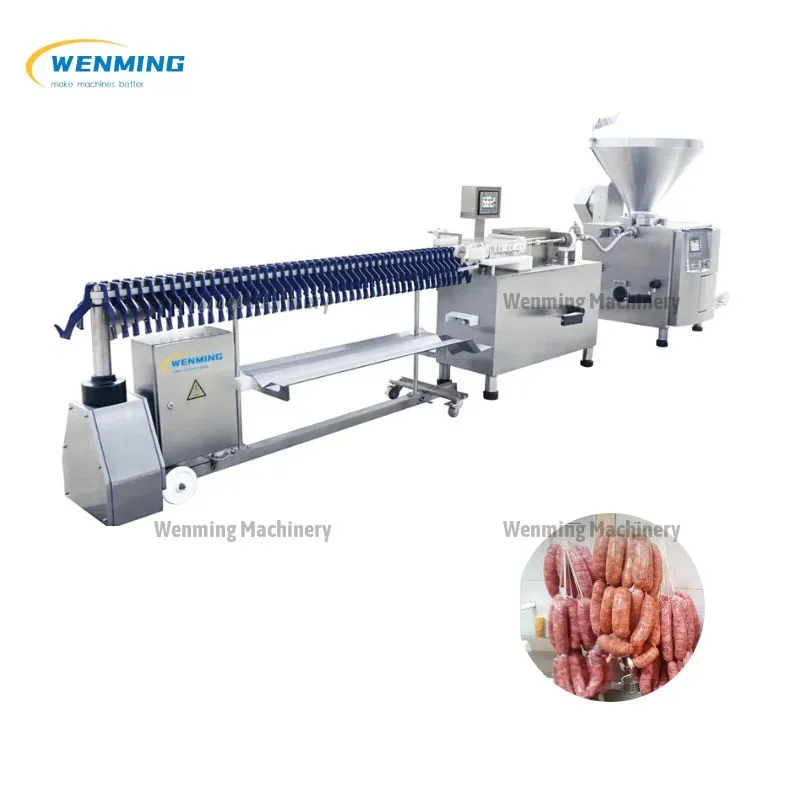

8) On-line with the filling machine to realize continuous automatic production.
9) High efficiency and low cost.
3. The main technical parameters
1) The various actions and parameters of the machine are all modified in the filling machine, which is simple and clear, and the operation is very convenient.
2) The running speed can be adjusted steplessly according to the needs of users.
3) On-line with the filling machine to realize continuous automatic production.
4) High efficiency and low cost.

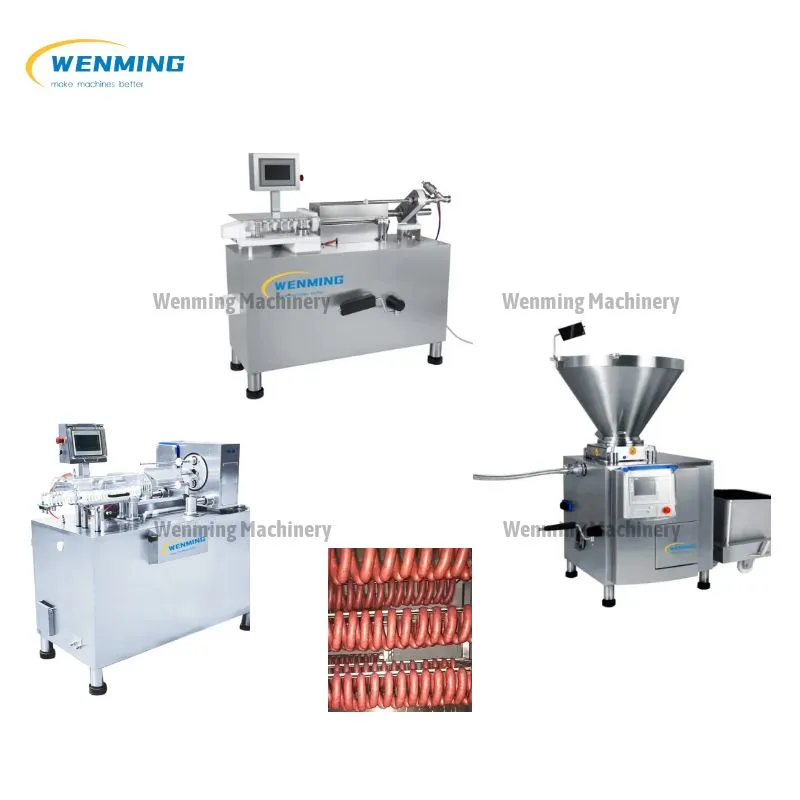

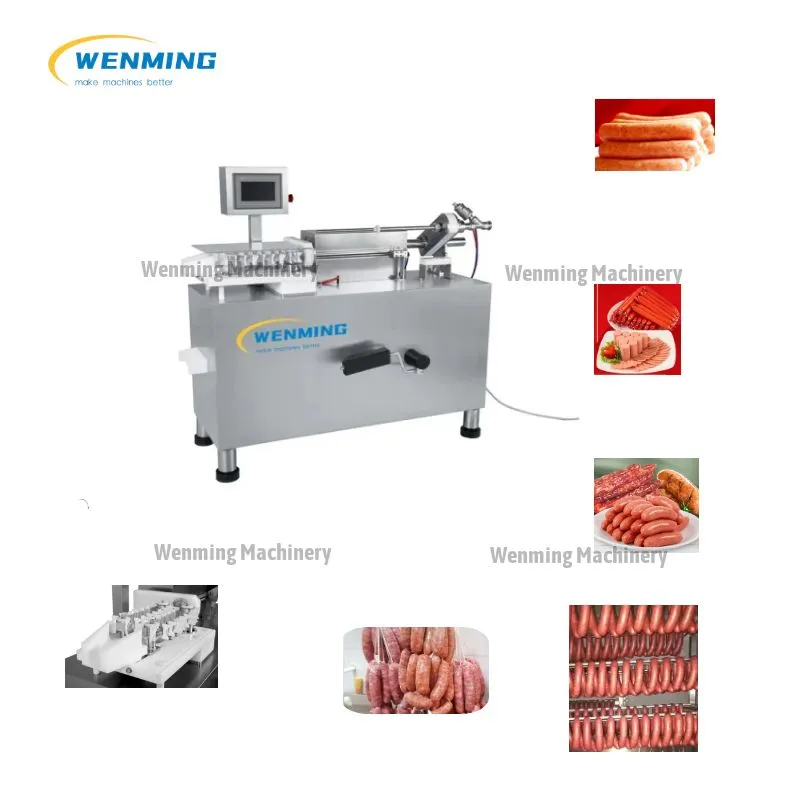

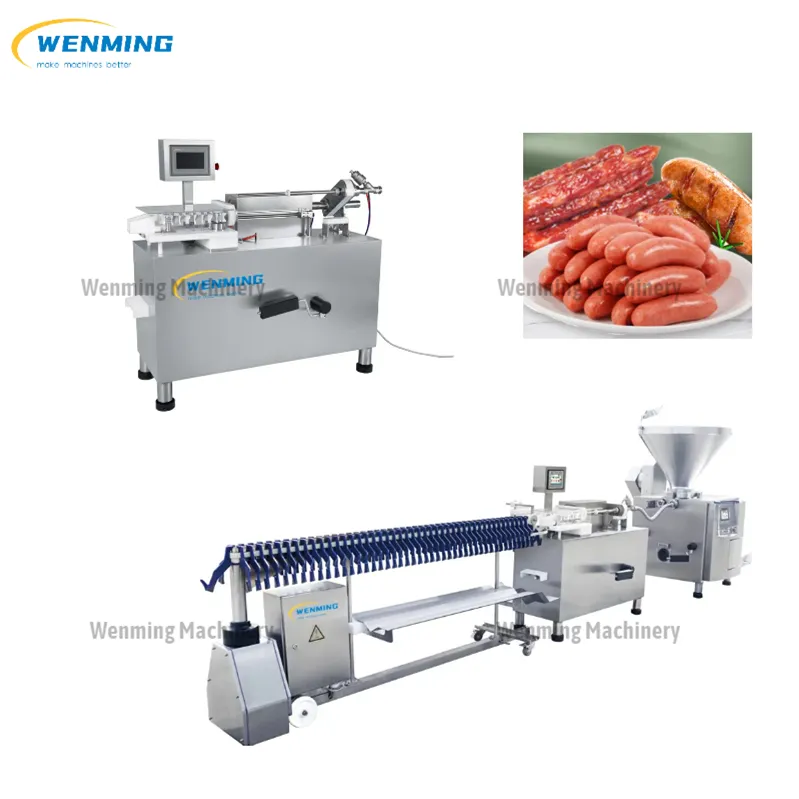

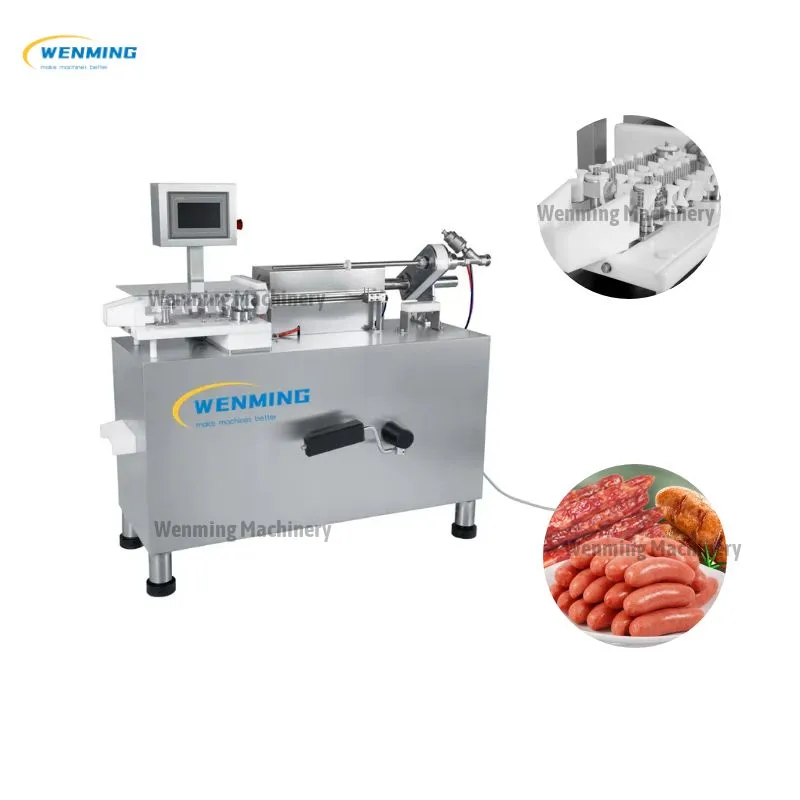

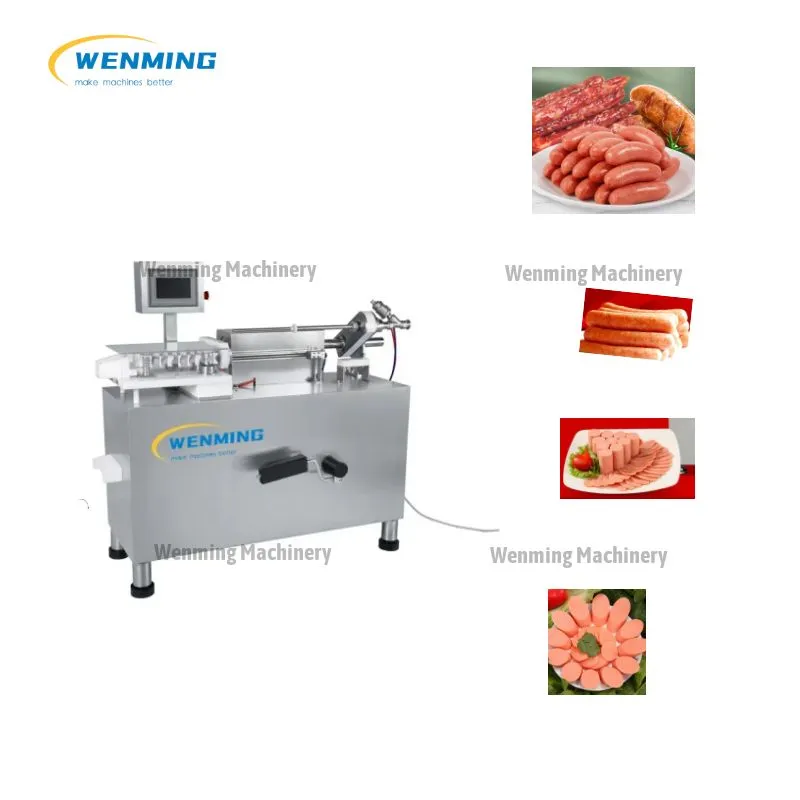

High Speed Kinking Machine WM-GSNJ-II
|
Size |
600*1250*1400mm |
|
Weight |
450kg |
|
Voltage |
380V-400V 50HZ |
|
Power |
4KW |
|
Speed |
Stepless speed regulation 0-200rpm |
|
Capacity |
300-500pcs/min |
|
Air Compressor Need |
0.5---0.8MPa |
|
Transfer Method |
servo drive |
|
Suitable For Specifications |
Length40-200mm diameter 16-30mm |
|
Control |
Man-machine interface matching filling machine |
|
Induction Method |
Pneumatic sensor switch, proximity switch |
|
Electrical Components |
Inovance//Hitec//Kunlun Tongtai |
|
Waterproof Level |
Main IP65 |

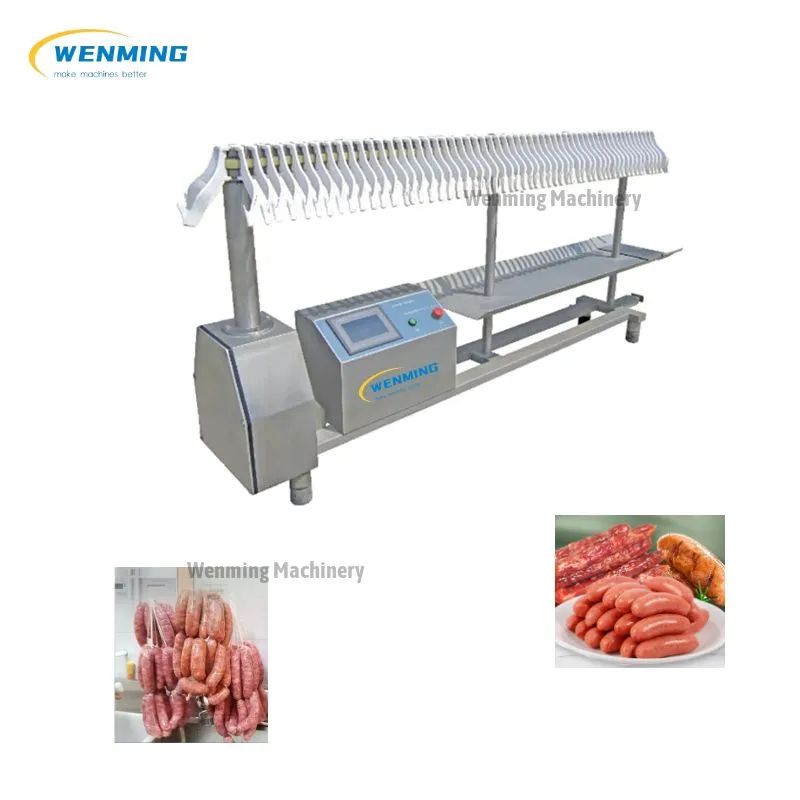

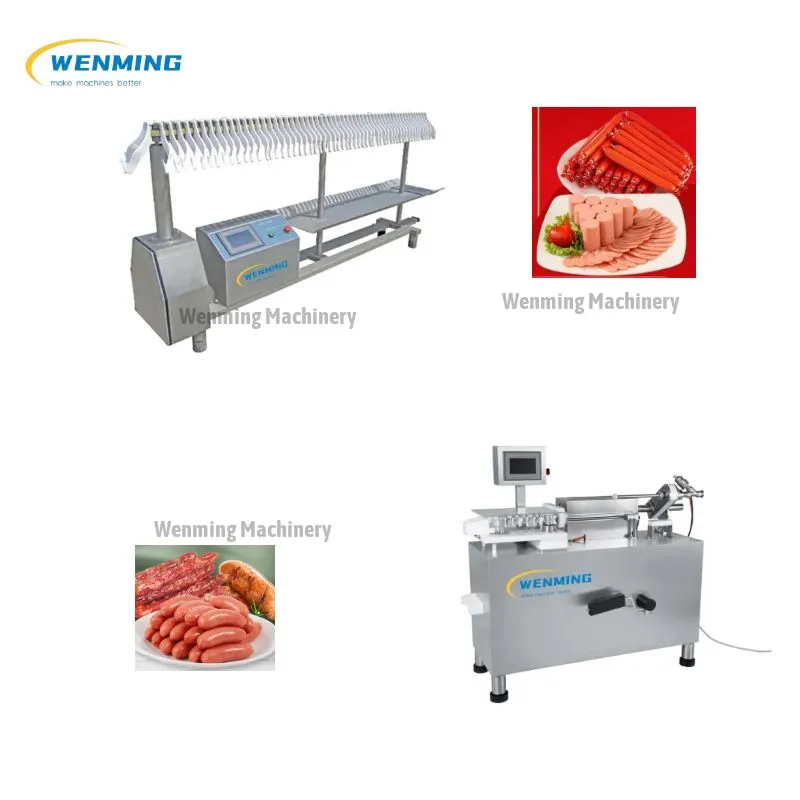

WM-XG2250 Sausage Hanging Machine
1) The various actions and parameters of the machine are all modified in the filling machine, which is simple and clear, and the operation is very convenient.
2) The running speed can be adjusted steplessly according to the needs of users.
3) On-line with the filling machine to realize continuous automatic production.
4) High efficiency and low cost.
|
Power |
1.5KW |
|
Voltage |
AC380V-400V 50HZ |
|
Capacity |
3600kg/h |
|
Running Speed |
Stepless speed regulation 0-1000 |
|
Twisting Speed |
Stepless speed regulation 0-450 times/min |
|
Weight |
160L |
|
Size |
3000*635*1144mm |
WM-ZKGC3600 Vacuum quantitative filling machine
|
Voltage |
380v 50HZ |
|
power |
8KW |
|
Capacity |
3600kg/h |
|
Filling Speed |
Stepless speed regulation 0-450 times/min |
|
Twisting Speed |
Stepless speed regulation 0-450 times/min |
|
Hopper Capacity |
220L |
|
Vacuum Pump |
German Puxu 2.0 series |
|
Vacuum Degree |
2×102mbar |
|
Agitator Device |
Directional spiral auger |
|
Single Irrigation Pipe |
Φ22mm Φ28mm Φ35mm |
|
Twister (optional) |
Standard configuration of kink tube: Φ10, Φ12, Φ15, Φ19mm (standard configuration) (Material: 316L) Φ8 , Φ9mm (special customization) Rubber gasket: Φ13, Φ16, Φ19mm (standard configuration) Stop ring: Φ10, Φ12, Φ15, Φ19mm (standard configuration) Adjustment sleeve: Φ14, Φ20, Φ26 (standard configuration) Hand-held sleeve: Φ10, Φ12, Φ15, Φ19mm (standard configuration) Follow-up sleeve: Φ10, Φ12, Φ15, Φ19mm (standard configuration) Synchronous belt: T10-530-17 Magodix (standard configuration) rear box T10-500-10 Magodix (standard configuration) front box T10-530-25 Magodix (standard configuration) kink motor |
|
Lifting Device (optional) |
Hydraulic |
|
Electrical Configuration |
KP700---Siemens human-machine interface (global European version) SINAMICS-V90-3.5KW Siemens servo drive (filling) SINAMICS-V90-1.5KW Siemens servo drive (kink) PLC-CPU1214C Siemens PLC PSU100L Siemens switching power supply KM AC contactor Siemens series Emergency stop switch---German Mueller |
|
Reducer |
Imported--SITI-2 (standard) |
|
Machine Weight |
Approximately 780 kg (without lift) Approximately 1260 kg (fully equipped) |
|
Size |
1130X1150X1850(mm) without lifting 1960X1450X1850(mm) fully equipped |
